Led Panel Light

With our domain expertise, we are intended to providing highly efficient range of lighting décor for industrial hallways and for other commercial uses. Our product range has features that are easy to install, high shock resistant, everlasting, and many other such attributes. Our complete array of product lists is as follows:

Lites_1

8W → RI 08 – 12

  • Input voltage : AC 110 – 240V 50/ 60 Hz
  • Power : 8W
  • CRI: ≥ 85
  • Luminous flux : ≥ 560lm
  • Beam angle : 120°
  • Material : Die-casting aluminium
  • Lamp size : 120*25mm
  • Hole size : 105mm
  • Colour temperature : 2700 – 6500K

15W → RI 15 – 12

  • Input voltage : AC 110 – 240V 50/ 60 Hz
  • Power : 15W
  • CRI: ≥ 85
  • Luminous flux : ≥ 1350lm
  • Beam angle : 120°
  • Material : Die-casting aluminium
  • Lamp size : 172*25mm
  • Hole size : 155mm
  • Colour temperature : 2700 – 6500K

22W → RI 22 – 12

  • Input voltage : AC 110 – 240V 50/ 60 Hz
  • Power : 22W
  • CRI: ≥ 85
  • Luminous flux : ≥ 1980lm
  • Beam angle : 120°
  • Material : Die-casting aluminium
  • Lamp size : 225*25mm
  • Hole size : 200mm
  • Colour temperature : 2700 – 6500K

30W → RI 30 – 12

  • Input voltage : AC 110 – 240V 50/ 60 Hz
  • Power : 30W
  • CRI: ≥ 85
  • Luminous flux : ≥ 2700lm
  • Beam angle : 120°
  • Material : Die-casting aluminium
  • Lamp size : 300*25mm
  • Hole size : 280mm
  • Colour temperature : 2700 – 6500K

8W → RI 08- 3 in 1

  • Input voltage : AC 110 – 240V 50/ 60 Hz
  • Power : 8W
  • CRI: ≥ 85
  • Luminous flux : ≥ 560lm
  • Beam angle : 120°
  • Material : Die-casting aluminium
  • Lamp size : 120*25mm
  • Hole size : 105mm
  • Colour temperature : 2700 – 6500K

15W → RI 15 – 3 in 1

  • Input voltage : AC 110 – 240V 50/ 60 Hz
  • Power : 15W
  • CRI: ≥ 85
  • Luminous flux : ≥ 1350lm
  • Beam angle : 120°
  • Material : Die-casting aluminium
  • Lamp size : 172*25mm
  • Hole size : 155mm
  • Colour temperature : 2700 – 6500K

22W → RI 22 – 3 in 1

  • Input voltage : AC 110 – 240V 50/ 60 Hz
  • Power : 22W
  • CRI: ≥ 85
  • Luminous flux : ≥ 1980lm
  • Beam angle : 120°
  • Material : Die-casting aluminium
  • Lamp size : 225*25mm
  • Hole size : 2020mm
  • Colour temperature : 2700 – 6500K

30W → RI 30 – 3 in 1

  • Input voltage : AC 110 – 240V 50/ 60 Hz
  • Power : 30W
  • CRI: ≥ 85
  • Luminous flux : ≥ 2700lm
  • Beam angle : 120°
  • Material : Die-casting aluminium
  • Lamp size : 300*25mm
  • Hole size : 280mm
  • Colour temperature : 2700 – 6500K

Product features:

  • High efficiency: High lumen output, low power, power efficiency above 92%
  • Stable: Constant current driver, fast response (no delay), low temperature, easy installation.
  • Long lifespan: Above 35,000 hours
  • Energy saving: Based on the same illuminance, LED lights save 80% electricity than conventional lights.

Application:

  • Widely used in city buildings, hotel, supermarket, office, commercial complexes, factories, residential, institution buildings etc.

8W → RI 08- 11

  • Input voltage : AC 110 – 240V 50/ 60 Hz
  • Power : 8W
  • CRI: ≥ 85
  • Luminous flux : ≥ 560lm
  • Beam angle : 120°
  • Material : Die-casting aluminium
  • Lamp size : 120*25mm
  • Hole size : 105mm
  • Colour temperature : 2700 – 6500K

15W → RI 15 – 11

  • Input voltage : AC 110 – 240V 50/ 60 Hz
  • Power : 15W
  • CRI: ≥ 85
  • Luminous flux : ≥ 1350lm
  • Beam angle : 120°
  • Material : Die-casting aluminium
  • Lamp size : 172*25mm
  • Hole size : 155mm
  • Colour temperature : 2700 – 6500K

22W → RI 22 – 11

  • Input voltage : AC 110 – 240V 50/ 60 Hz
  • Power : 22W
  • CRI: ≥ 85
  • Luminous flux : ≥ 1980lm
  • Beam angle : 120°
  • Material : Die-casting aluminium
  • Lamp size : 225*25mm
  • Hole size : 200mm
  • Colour temperature : 2700 – 6500K

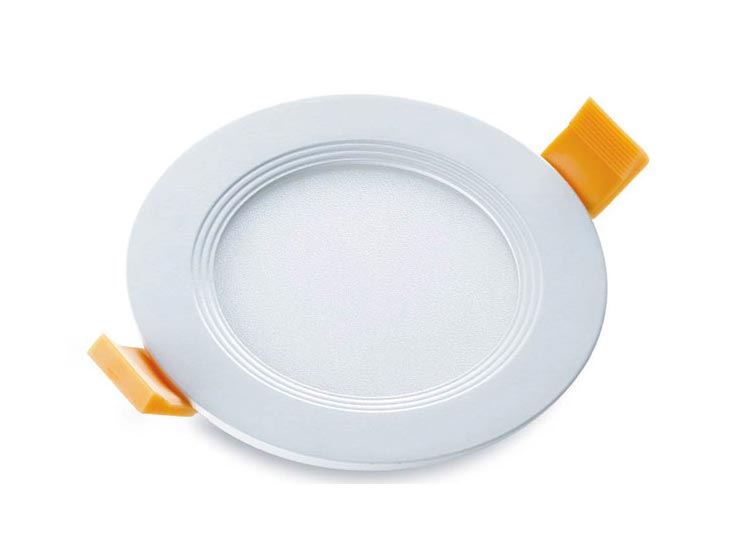

Lites_4_1

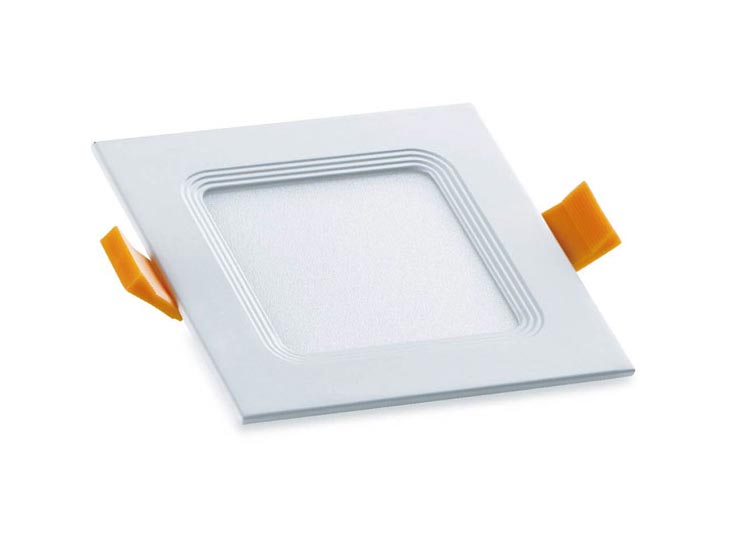

Lites_4_2
{"autoplay":"true","autoplay_speed":"3000","speed":"300","arrows":"true","dots":"true"}

8W → RI 08 – 16

  • Input voltage : AC 110 – 240V 50/ 60Hz
  • Power : 8W
  • CRI: ≥ 80
  • Luminous flux : ≥ 500lm
  • Beam angle : 120°
  • Material : Die-casting aluminium
  • Lamp size : 120*18mm
  • Hole size : 105mm
  • Colour temperature : 2700 – 6500K

15W → RI 15 – 16

  • Input voltage : AC 110 – 240V 50/ 60Hz
  • Power : 15W
  • CRI: ≥ 80
  • Luminous flux : ≥ 1300lm
  • Beam angle : 120°
  • Material : Die-casting aluminium
  • Lamp size : 172*18mm
  • Hole size : 155mm
  • Colour temperature : 2700 – 6500K

22W → RI 22 – 16

  • Input voltage : AC 110 – 240V 50/ 60Hz
  • Power : 22W
  • CRI: ≥ 80
  • Luminous flux : ≥ 1900lm
  • Beam angle : 120°
  • Material : Die-casting aluminium
  • Lamp size : 225*18mm
  • Hole size : 200mm
  • Colour temperature : 2700 – 6500K

30W → RI 30 – 16

  • Input voltage : AC 110 – 240V 50/ 60Hz
  • Power : 30W
  • CRI: ≥ 80
  • Luminous flux : ≥ 2500lm
  • Beam angle : 120°
  • Material : Die-casting aluminium
  • Lamp size : 300*18mm
  • Hole size : 280mm
  • Colour temperature : 2700 – 6500K

8W → RI 08 – 18

  • Input voltage : AC 110 – 240V 50/ 60Hz
  • Power : 8W
  • CRI: ≥ 85
  • Luminous flux : ≥ 560lm
  • Beam angle : 120°
  • Material : Die-casting aluminium
  • Lamp size : 95*25mm
  • Hole size : 75mm
  • Colour temperature : 2700 – 6500K

15W → RI 15 – 18

  • Input voltage : AC 110 – 240V 50/ 60Hz
  • Power : 15W
  • CRI: ≥ 85
  • Luminous flux : ≥ 1350lm
  • Beam angle : 120°
  • Material : Die-casting aluminium
  • Lamp size : 1445*25mm
  • Hole size : 125mm
  • Colour temperature : 2700 – 6500K

22W → RI 22 – 18

  • Input voltage : AC 110 – 240V 50/ 60Hz
  • Power : 22W
  • CRI: ≥ 85
  • Luminous flux: ≥ 1980lm
  • Beam angle : 120°
  • Material : Die-casting aluminium
  • Lamp size : 195*25mm
  • Hole size : 175mm
  • Colour temperature : 2700 – 6500K

30W → RI 30 – 18

  • Input voltage : AC 110 – 240V 50/ 60Hz
  • Power : 30W
  • CRI: ≥ 85
  • Luminous flux : ≥ 2700lm
  • Beam angle : 120°
  • Material : Die-casting aluminium
  • Lamp size : 300*25mm
  • Hole size : 285mm
  • Colour temperature : 2700 – 6500K

50W → RI 50- 12

  • Input voltage : AC 110 – 240V 50/ 60 Hz
  • Power : 50W
  • CRI: ≥ 85
  • Luminous flux : ≥ 4500lm
  • Beam angle : 120°
  • Material : Die-casting aluminium
  • Lamp size : 600*30mm
  • Hole size : 580mm
  • Colour temperature : 2700 – 6500K

40W → RI 40 – 12

  • Input voltage : AC 110 – 240V 50/ 60 Hz
  • Power : 40W
  • CRI: ≥ 85
  • Luminous flux : ≥ 4000lm
  • Beam angle : 120°
  • Material : Die-casting aluminium
  • Lamp size : 300*600*30mm
  • Hole size : 280*580mm
  • Colour temperature : 2700 – 6500K

Product features:

  • High efficiency: High lumen output, low power, power efficiency above 92%.
  • Stable: Constant current driver, fast response (no delay), low temperature, easy installation.
  • Long lifespan: Above 35,000 hours.
  • Energy saving: Based on the same illuminance, LED lights save 80% electricity than conventional lights.

Application:

  • Widely used in city buildings, hotel, supermarket, office, commercial complexes, factories, residential, institution buildings etc.
